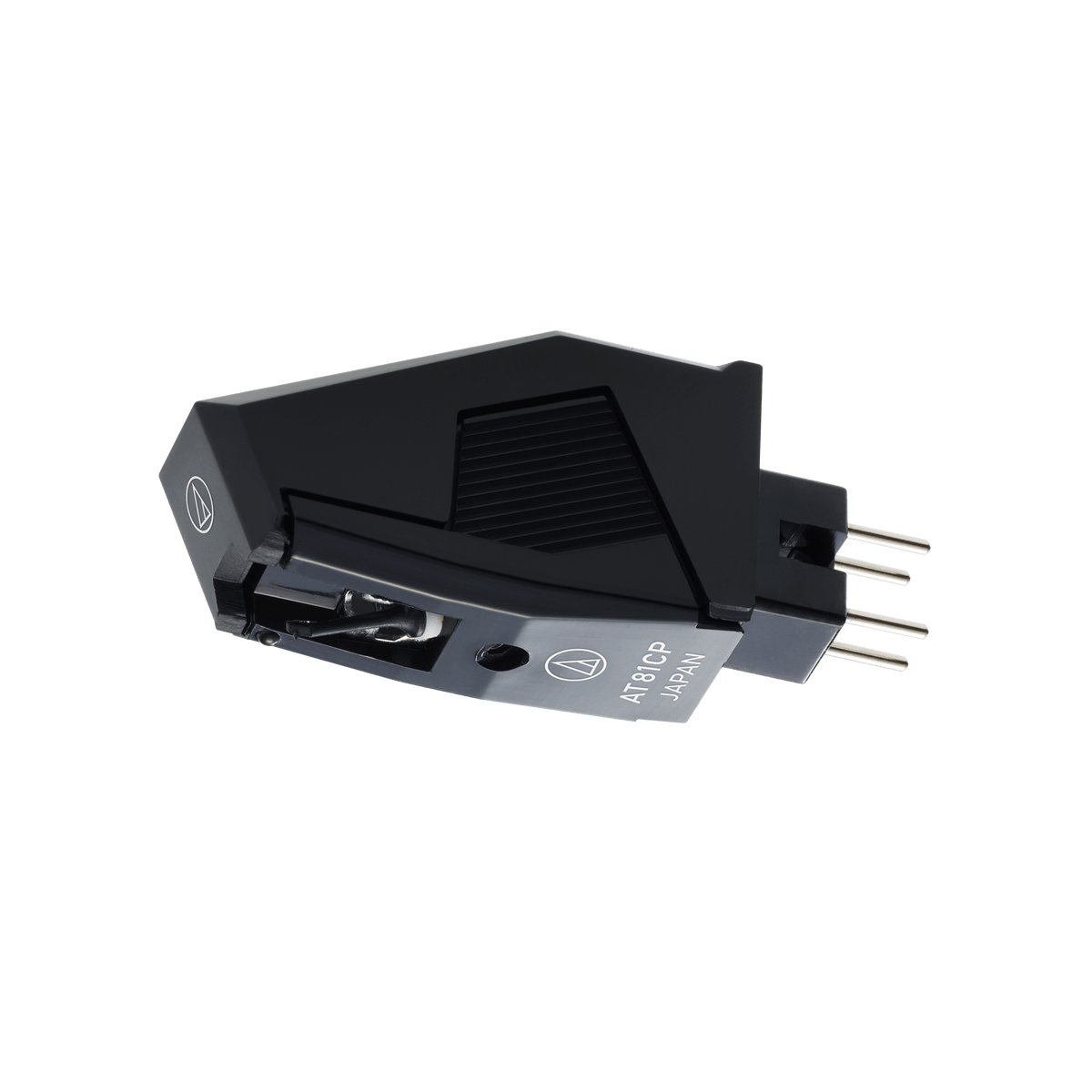

Audio-Technica Cartridge (AT81CP)

Name: Audio-Technica Cartridge (AT81CP)
Brand: Audio-Technica
SKU: AT81CP
Price: 6.00 GBP
Availability: InStock

£6.00 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

AT81CP

This 0.6 mil conical cartridge fits P-mount turntables.

Cartridge & Stylus
Frequency Response	20-20,000 Hz
Channel Separation	18 (dB at 1 kHz)
Vertical Tracking Angle	20°
Vertical Tracking Force	1.0-1.5 g (1.25 g standard)
Stylus Construction	Bonded round shank
Recommended Load Impedance	47,000 ohms
Coil Impedance	2.8 k ohms (1 kHz)
DC Resistance	410 ohms
Coil Inductance	400 mH (1 kHz)
Output Voltage	3.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance	2.5 dB (1 kHz)
Stylus Shape	0.6 mil conical
Cantilever	Carbon fiber-reinforced ABS
Mounting	P-mount
Dimensions	15.3 mm (0.60") H × 10.0 mm (0.39") W × 35.1 mm (1.38") D
Mounting Feature	P-mount
Recommended Load Capacitance	100 to 200 pF
Replacement Stylus	ATN81CP
Stylus Size	0.6 mil
Type	Dual Magnet
Weight	6.0 g (0.21 oz)
