Audio-Technica

Audio-Technica Dual Moving Magnet Stereo Cartridge (AT-VM95C)

Audio-Technica Dual Moving Magnet Stereo Cartridge (AT-VM95C)

£9.00 GBP
£9.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

AT-VM95C

This VM95 Series cartridge with 0.6 mil conical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.



    • VM95 Series dual magnet cartridge with 0.6 mil conical stylus
    • Aluminum cantilever
    • Specially wound coils increase output voltage
    • Durable low-resonance polymer housing
    • Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
    • Compatible with any AT-VMN95 replacement stylus





    Cartridge & Stylus
    Frequency Response 20-20,000 Hz
    Channel Separation 18 (dB at 1 kHz)
    Vertical Tracking Angle 23°
    Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
    Stylus Construction Bonded round shank
    Recommended Load Impedance 47,000 ohms
    Coil Impedance 3.3 k ohms (1 kHz)
    DC Resistance 485 ohms
    Coil Inductance 550 mH (1 kHz)
    Output Voltage 4.0 mV (1 kHz, 5 cm/sec.)
    Output Channel Balance 2.5 dB (1 kHz)
    Stylus Shape 0.6 mil conical
    Cantilever Aluminum pipe
    Static Compliance 17 x 10 – 6 cm / dyne
    Dynamic Compliance 6.5 x 10 – 6 cm / dyne (100 Hz)
    Mounting Half-inch
    Cartridge Weight 6.1g
    Dimensions 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D

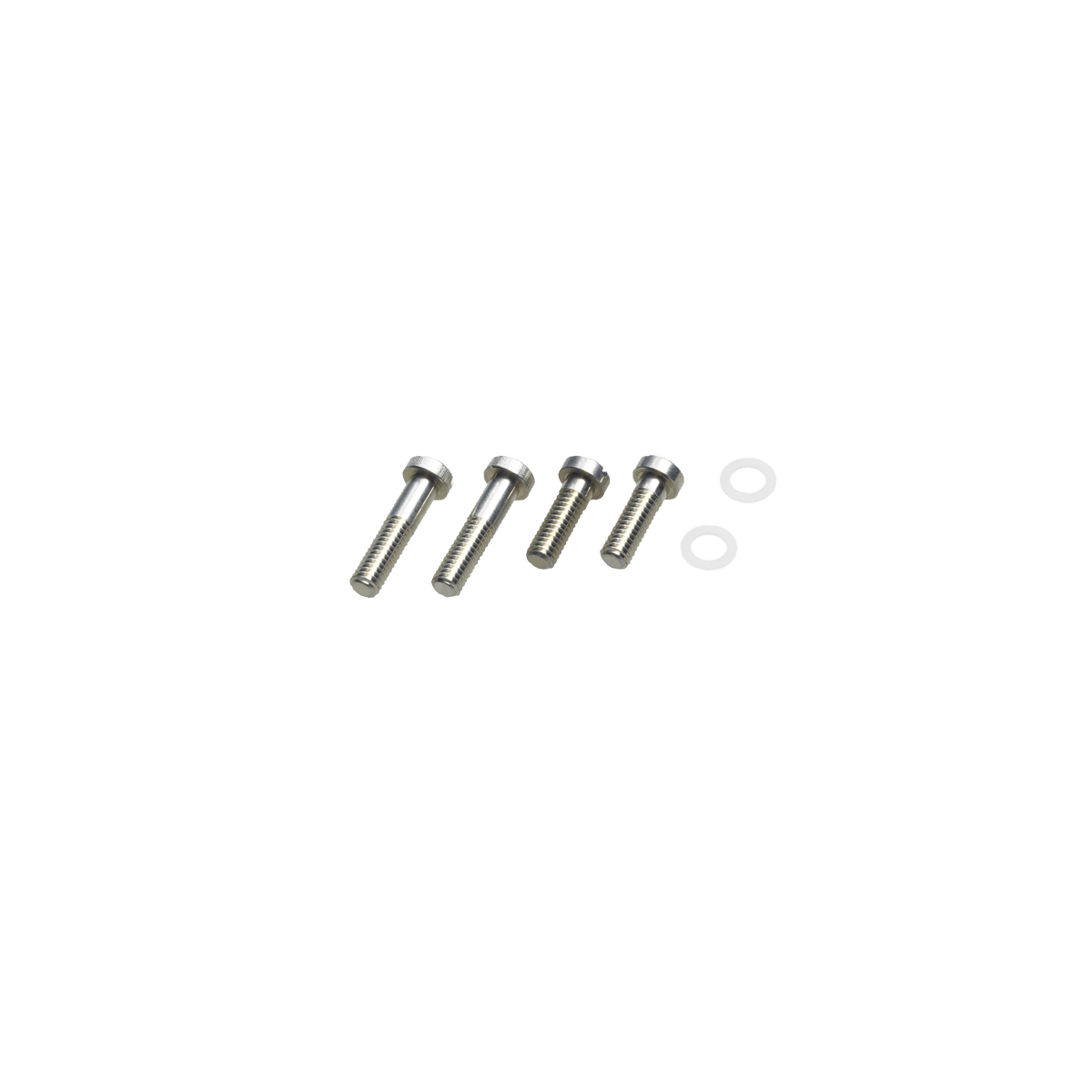

    Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers
    Model AT-VM95C
    Mounting Feature Half-inch mount
    Recommended Load Capacitance 100 to 200 pF
    Replacement Stylus AT-VMN95C
    Stylus Size 0.6 mil
    Type VM Stereo Dual Magnet
    Weight 6.1 g (0.22 oz)
    Wire Used for Coil T.P. Copper
