Audio-Technica

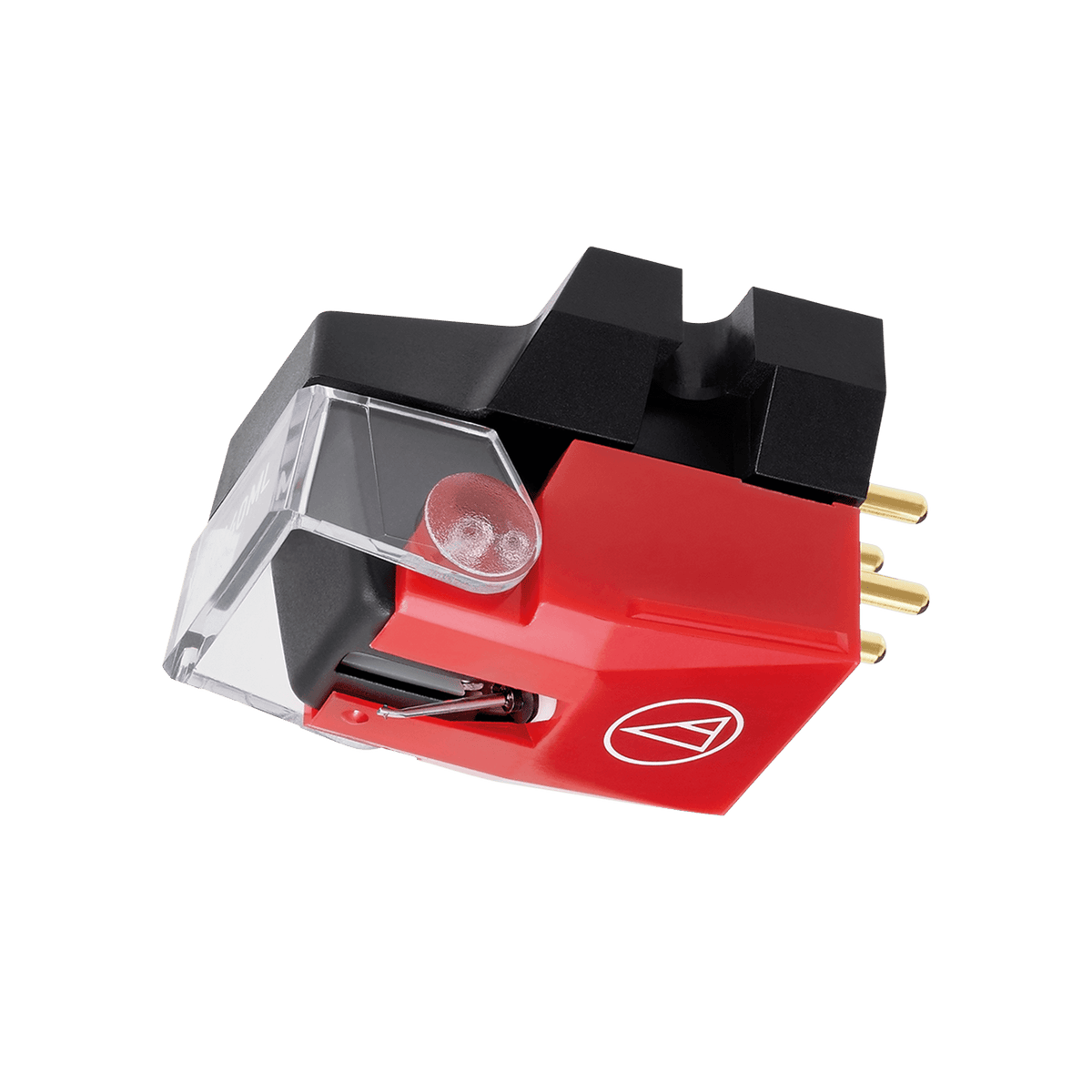

Audio-Technica Dual Moving Magnet MicroLine Stylus Cartridge (VM540ML)
Audio-Technica Dual Moving Magnet MicroLine Stylus Cartridge (VM540ML)
Regular price
£42.00 GBP
Regular price
Sale price
£42.00 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
VM540ML
The VM540ML MicroLine® stylus cartridge is the premier 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM540ML is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s MicroLine® stylus allows it to trace the record groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can’t match. The stylus’s multilevel shape also wears better than other styli, while reducing the wear on your records. Includes mounting hardware.
- VM dual magnet cartridge with MicroLine® stylus
- Aluminum cantilever

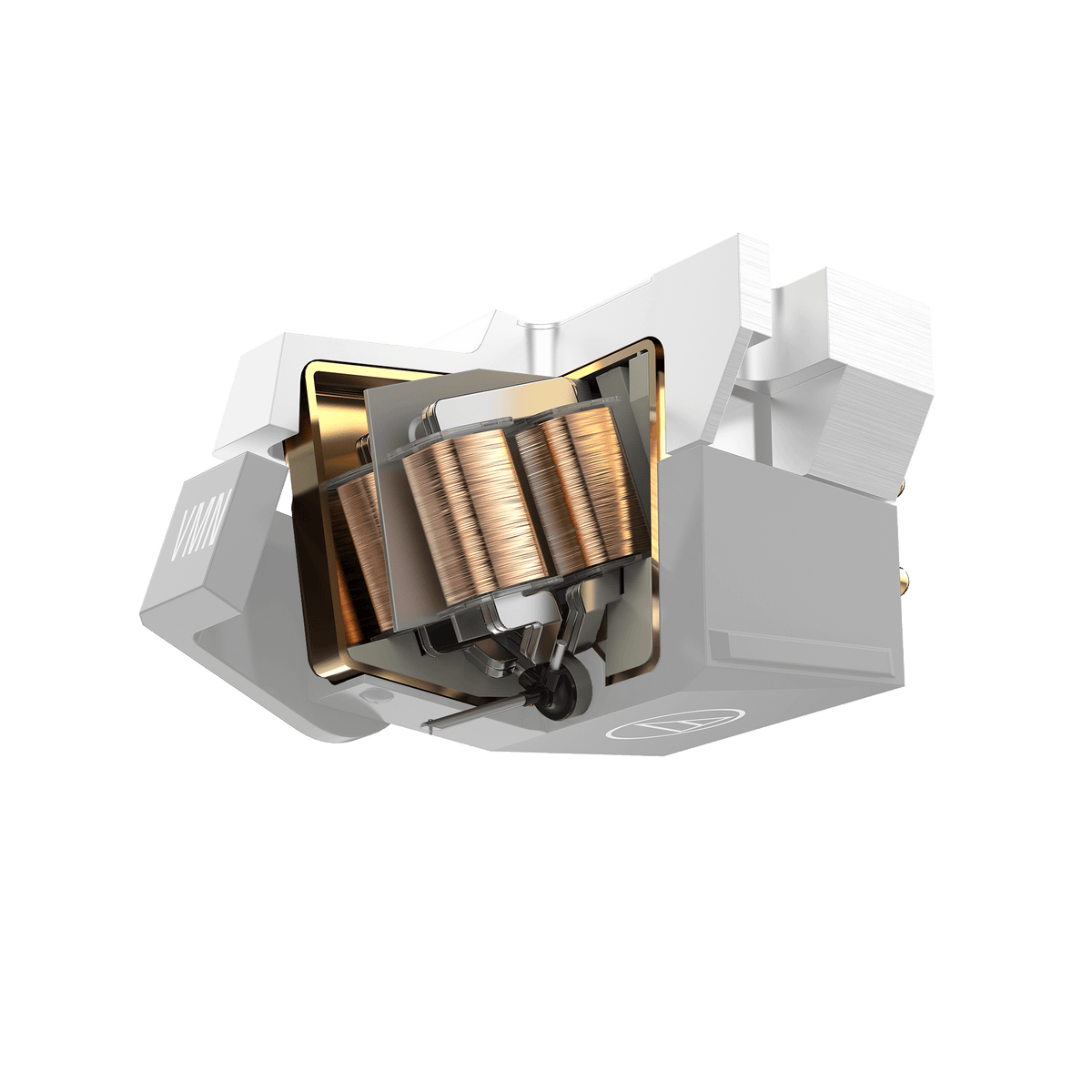

- Paratoroidal coils improve generating efficiency
- Center shield plate between the left and right channels reduces crosstalk
- Durable low-resonance polymer cartridge housing
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20-27,000 Hz |
| Channel Separation | 28 dB (1 kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8-2.2 g (2.0 g standard) |
| Stylus Construction | Nude square shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 2,700 ohms (1 kHz) |
| DC Resistance | 800 ohms |
| Coil Inductance | 460 mH (1 kHz) |
| Output Voltage | 4.0 mV (at 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.0 dB (1 kHz) |
| Stylus Shape | 2.2 x 0.12 mil MicroLine® |
| Cantilever | Aluminum tapered pipe |
| Static Compliance | 40 x 10-6 cm/dyne |
| Dynamic Compliance | 10 x 10-6 cm/dyne (100 Hz) |
| Mounting | Half-inch |
| Dimensions | 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D |

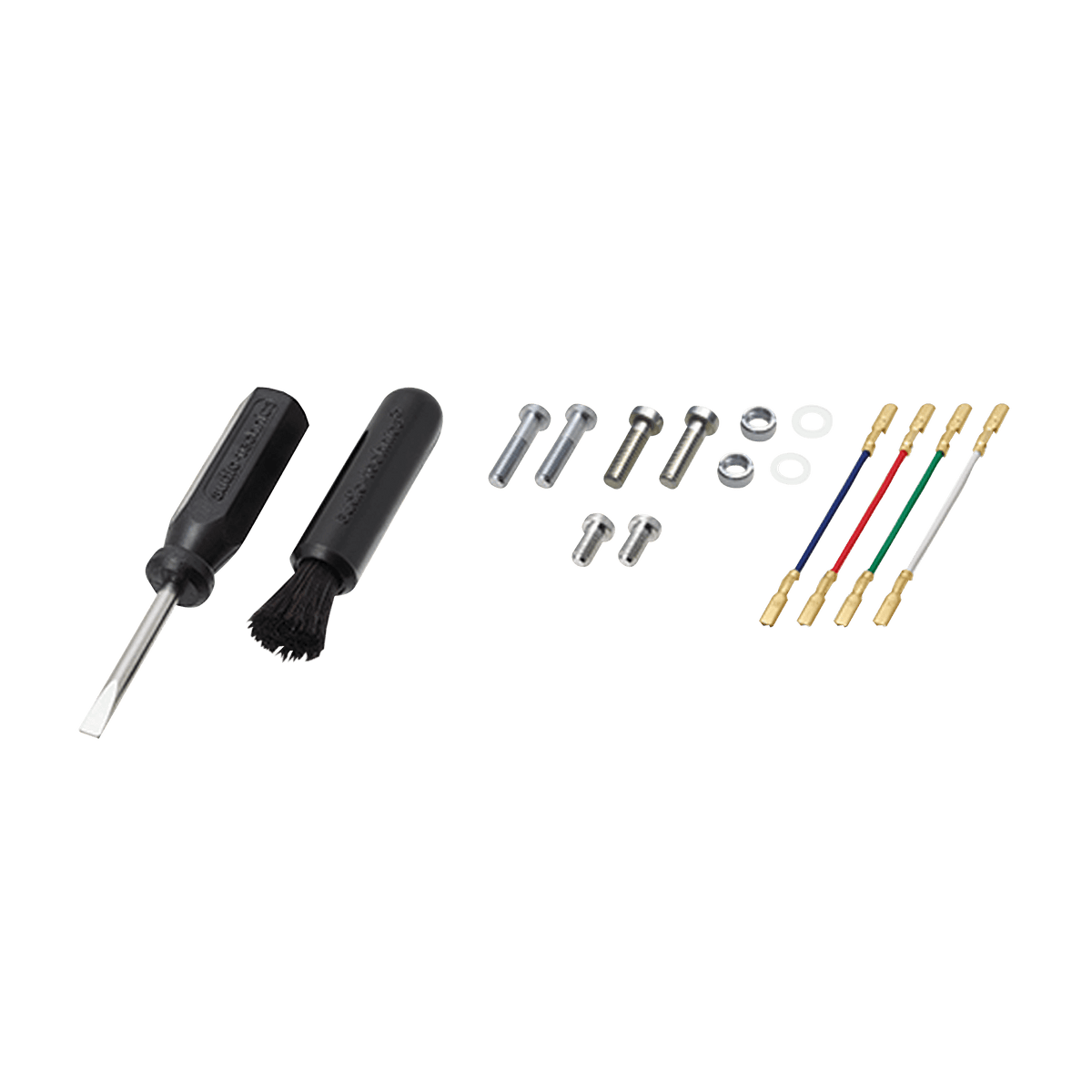

| Accessories Included | Six cartridge installations screws (5mm x 2, 8mm x 2 and 10mm x 2), two washers, two round nuts, non-magnetic screwdriver, brush, lead wire set |
| Mounting Feature | Half-inch mount |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | VMN40ML |
| Stylus Size | 0.12 x 2.2 mil |
| Type | VM Type |
| Weight | 6.4 g (0.2 oz) |
How Long Will Shipping Take?
For shipping and handling times, please see below:
| Item is Released | Items will ship within 1 day if in stock and as soon as available if inbound. |
| Item is a Pre-Order Sale | Items will ship once available after the release date. |
| Item is on Backorder | Orders will ship once checked in but may take 15-45 days to restock. |
