Audio-Technica

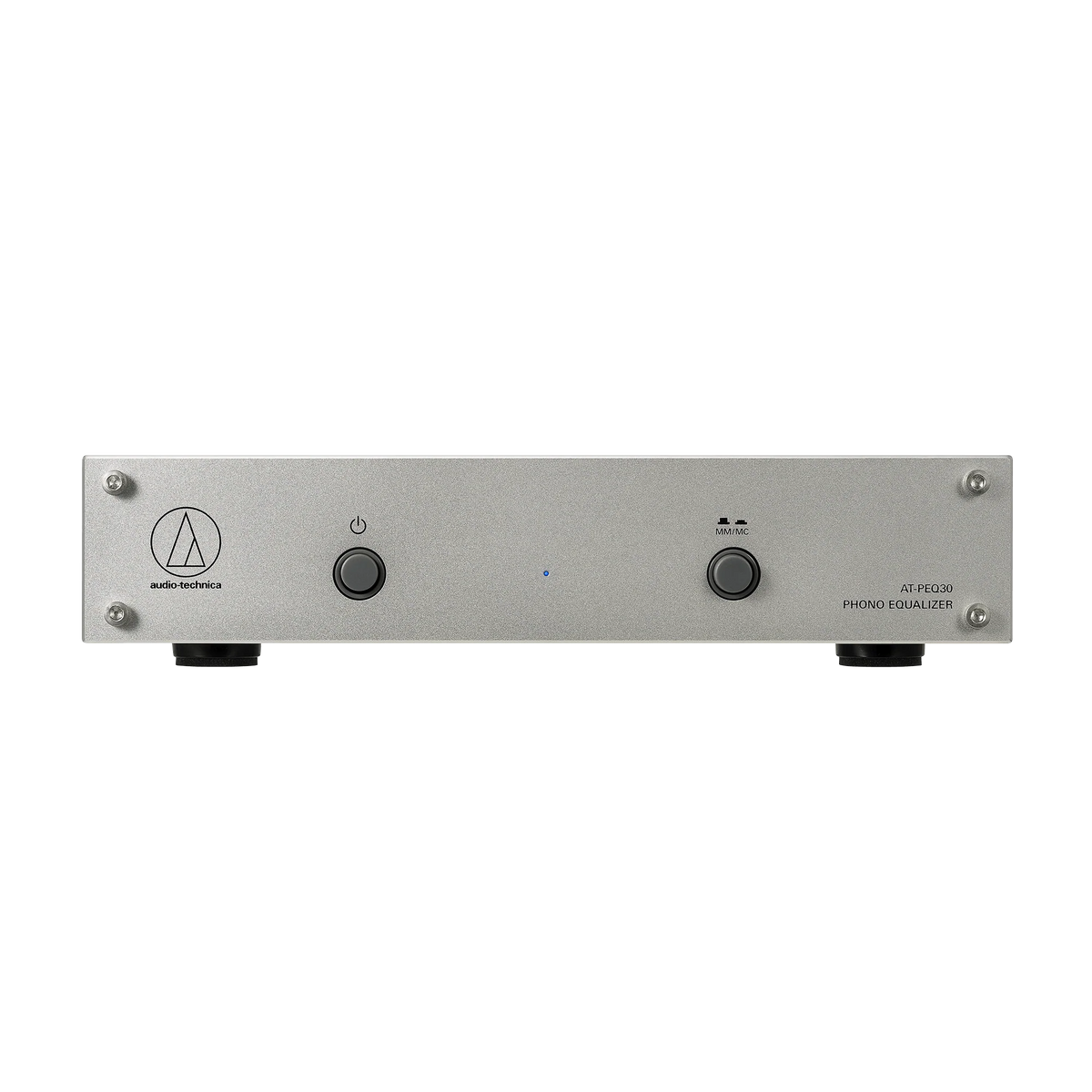

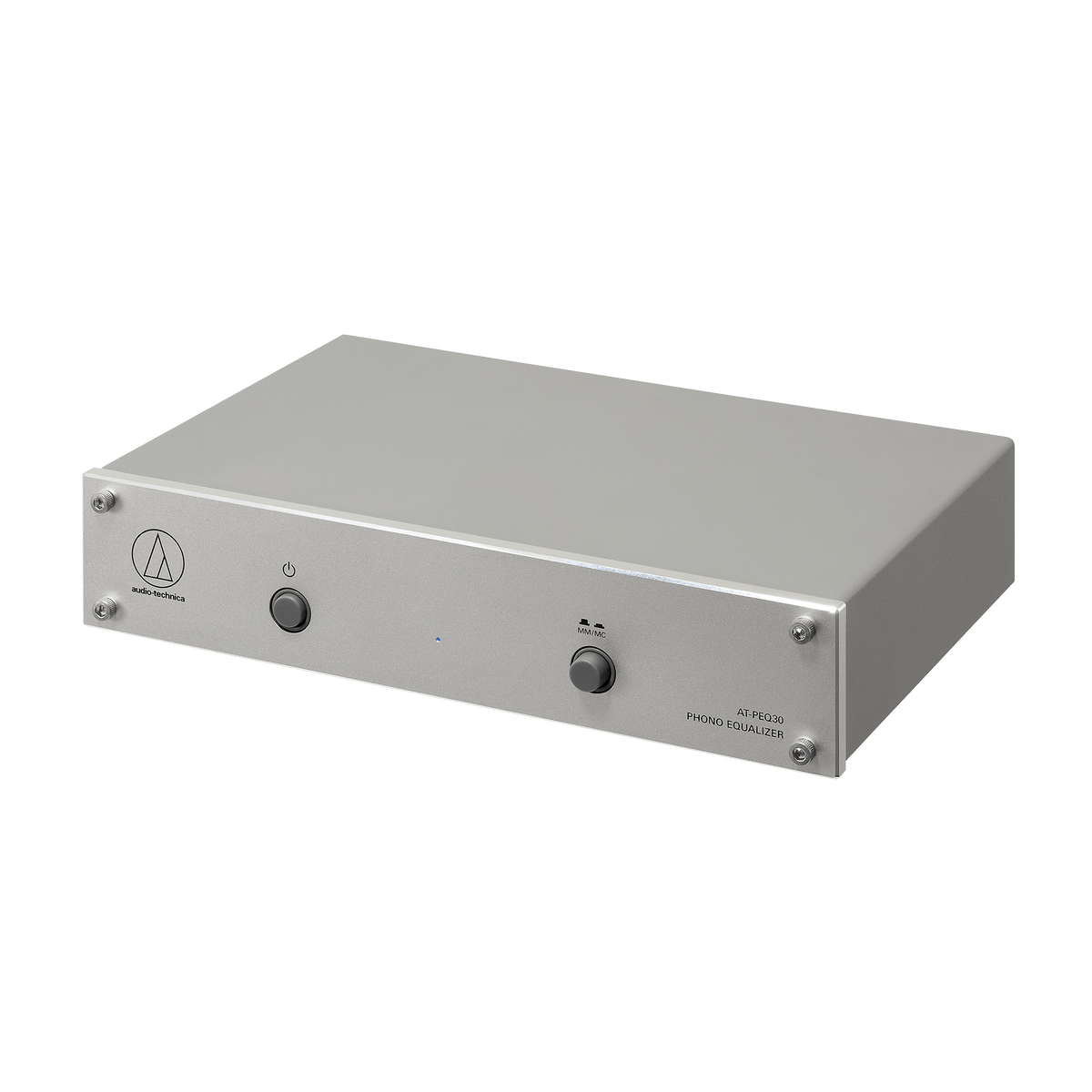

Audio-Technica Phono Equalizer (AT-PEQ30)

Audio-Technica Phono Equalizer (AT-PEQ30)

£42.00 GBP
£42.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

AT-PEQ30

The AT-PEQ30 phono equalizer is designed specifically to add a phono stage to a turntable setup or to upgrade a turntable’s built-in phono preamplifier.

It is compatible with turntables with MM (moving magnet) and MC (moving coil) cartridges. The AT-PEQ30 benefits from Audio-Technica’s years of analog audio expertise and uses the finest quality parts in a layout that is optimized for low noise and minimum distortion.

  • Selectable MM and MC input with fixed gain and impedance allows for compatibility with a wide range of moving magnet and moving coil cartridges

  • High-quality FET inputs ensure a low-noise signal when incorporated with a negative feedback-type phono equalizer circuit

  • Precision components provide an excellent RIAA response for best-in-class performance

  • The all metal construction enclosure provides superior isolation from radio and electronic noise interference

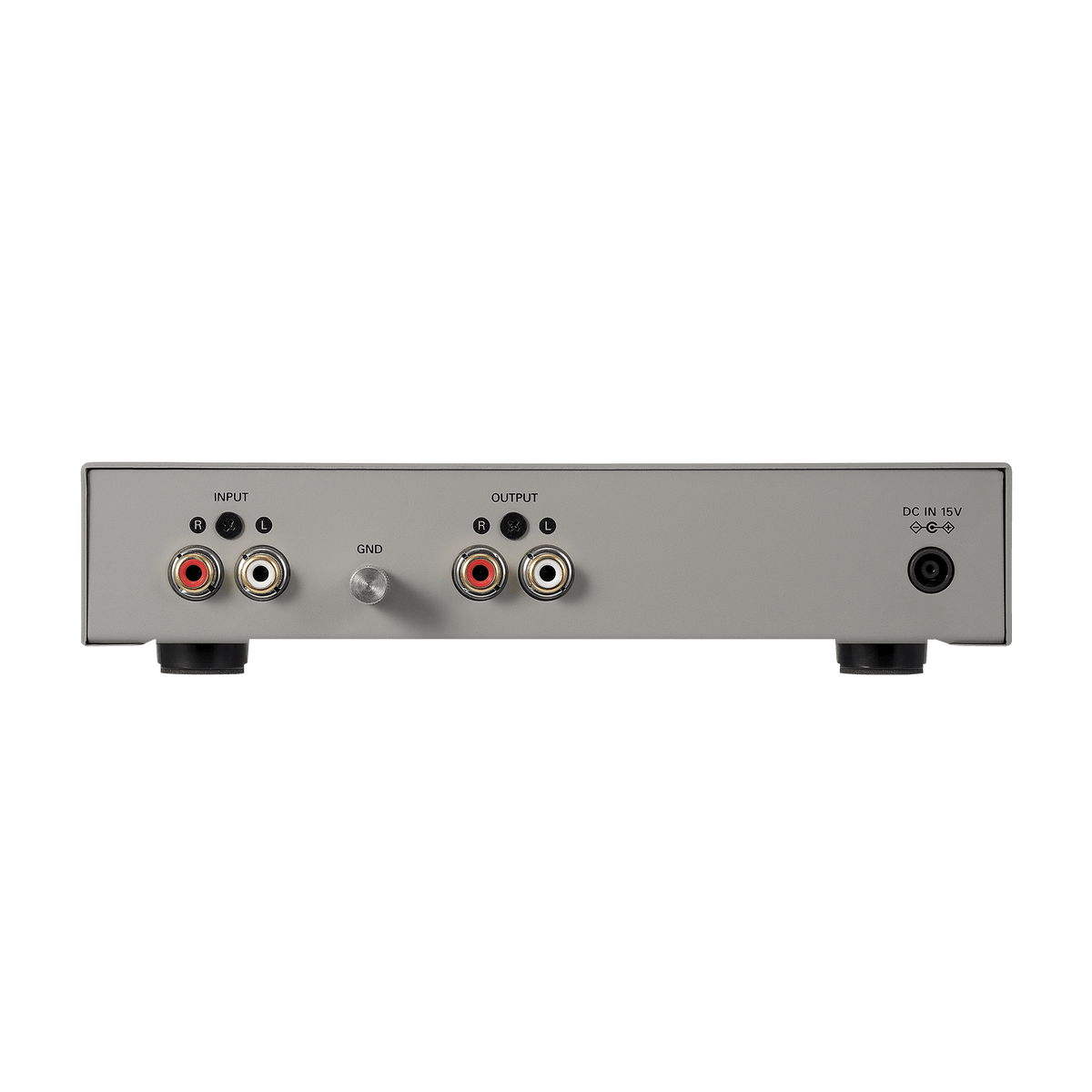

  • The machined aluminum front panel and gold-plated input/output RCA connectors are examples of the high-grade material used throughout



Phono Equalizer
Input Impedance MM type: 47 kiloohms MC type: 120 ohms
Input Sensitivity MM type: 4.5 mV MC type: 0.28 mV
Rated output MM type: 250 mV MC type: 250 mV
Gain MM type: 35 dB MC type: 59 dB
Signal-to-Noise Ratio MM type: 100 dB MC type: 74 dB
RIAA Deviation (20 to 20,000 Hz) MM type: ±0.5 dB (20 to 20,000 Hz) MC type: ±0.5 dB
Power Supply DC 15 V, 1.2 A
Power Consumption 2.5 W
Dimensions 47 mm (1.85") H x 197.5 mm (7.78") W x 125.5 mm (4.94") D (excluding protrusions)
Weight 890 g (31.4 oz)
Accessories Included AC adapter
